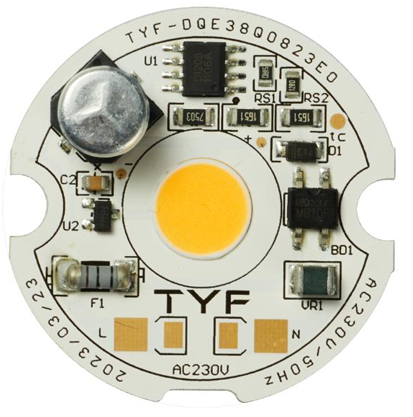

AC COB LED MODULE 7W 210-240V 50Hz without driver dimming function

बुनियादी जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: TYF
प्रमाणन: LM-80 Rohs CE CB
मॉडल संख्या: TYF-DQE38Q0823E0
न्यूनतम आदेश मात्रा: 500
मूल्य: 1-1.3usd/pcs
भुगतान शर्तें: टी/टी
विस्तार जानकारी
प्रमुखता देना:

AC COB LED module 7W

,

AC LED module without driver

,

dimmable LED module 210-240V


उत्पाद विवरण

AC COB LED MODULE 7W 210-240V 50Hz without driver dimming function
Key Features
  • Connected directly to AC voltage without driver
  • Module with integrated components
  • Economical one-piece solution
  • High efficiency, high power factor and low harmonic distortion
  • High color rendering index (≥90)
  • High luminous efficacy 95LM/W
  • Three-year warranty
Certifications
  • Safety standard: EN62031, EN 62471
  • Electromagnetic compatibility: EN55015, EN 61000-3-2, EN 61547
Electrical Parameters
Parameter Value
Input Voltage AC210-240Vac (Limit voltage 200-264Vac)
Input Current 30mA
Frequency 50Hz
Input Power 7W±5% (@230V)
Power Factor >0.91
Surge L-N=1KV
PCB Surge Capacity 0.5KV
Ambient Temperature -25-45°C
Tc Temperature t<85°C
Reduced Flicker <15%
Dimming TRIAC
