3v 1.5w White 3030 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 210-220LM/W

बुनियादी जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: TYF
प्रमाणन: LM-80 Rohs
मॉडल संख्या: TS1-E30FL-0202BB
न्यूनतम आदेश मात्रा: 20000
मूल्य: 0.034-0.04
भुगतान शर्तें: टी/टी
विस्तार जानकारी
प्रमुखता देना:

3v 3030 SMD LED chip

,

high power 3030 LED

,

CRI90 3030 LED chip


उत्पाद विवरण

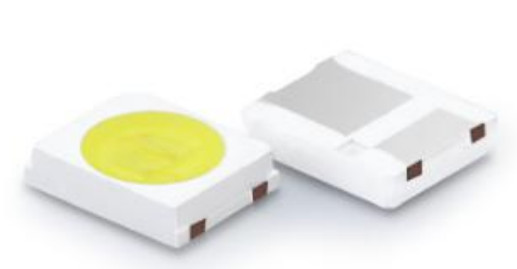

3V 1.5W White 3030 SMD LED Chip High Power 3000K-4000K CRI70/80/90 210-220LM/W
Key Features
  • EMC package
  • Package Dimension: 3.0mm × 3.0mm × 0.60mm
  • Viewing Angle: 120°
  • ROHS Approved
Product Description

The TYF 3030 package offers high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.

Applications
Outdoor general lighting Industrial lighting Professional downlights Retrofits and fixtures
Technical Specifications
Limiting Power: 1.5 W
Forward Current: IF ≦250 mA
Operating Temperature: -40℃ to +85℃
Junction Temperature: 125℃
Thermal Resistance: 15℃/W
Storage Temperature: -40℃ to +105℃
ESD Sensitivity: ESD 2,000V HBM
Reverse Voltage: Reverse testing is not allowed
Reverse Current: VR=5V 1uA
Soldering Temperature: 260℃/3-5sec
Moisture Sensitivity: MSL3 ℃/RH/H
