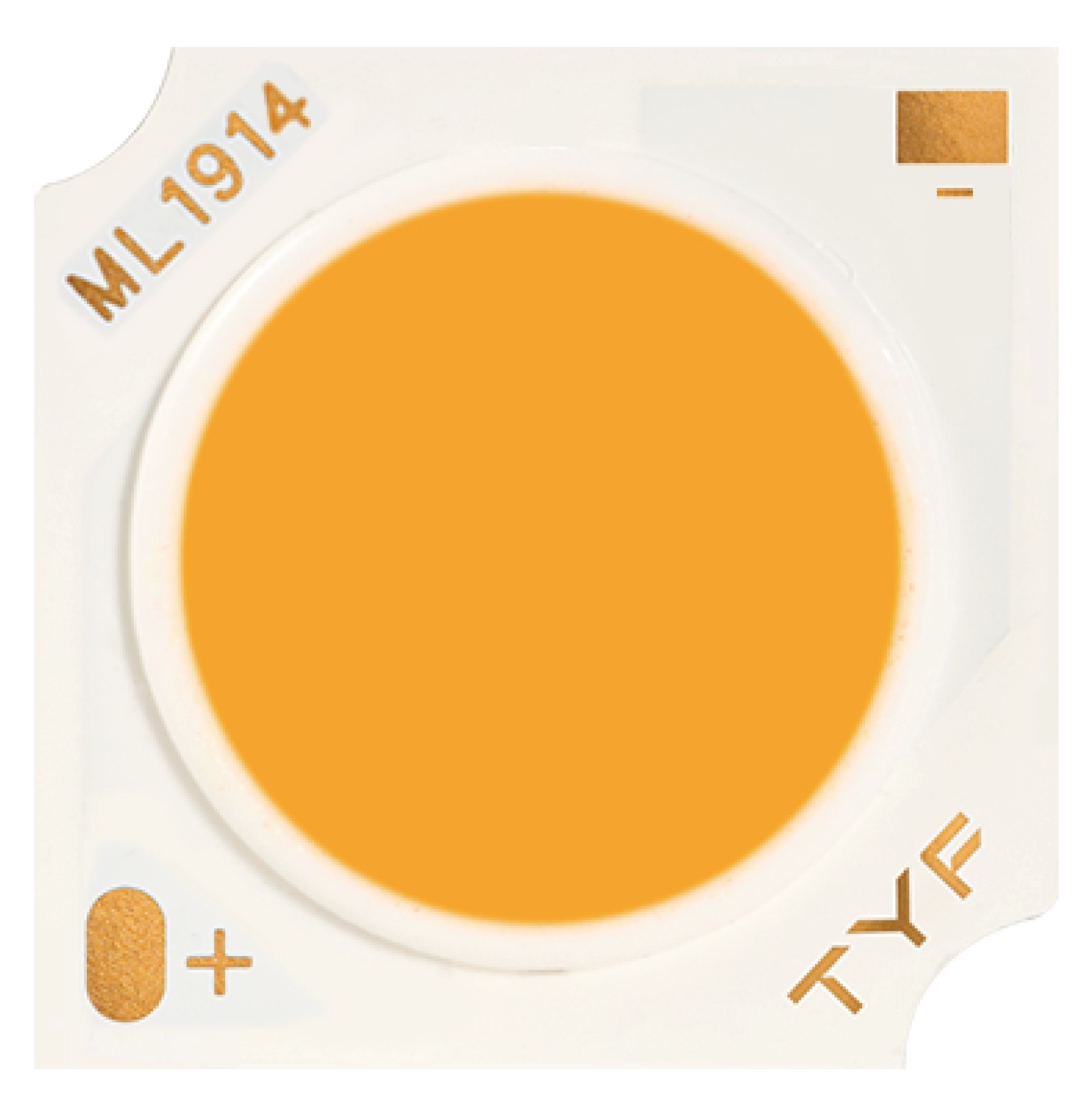

36V KSF high lumens RA90 190-220LM/W

बुनियादी जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: TYF
प्रमाणन: LM-80
मॉडल संख्या: TX-1914B-1209BB
न्यूनतम आदेश मात्रा: 500
मूल्य: 0.7-5usd/pcs
विस्तार जानकारी
प्रमुखता देना:

36V LED COB chip

,

high lumens LED COB

,

RA90 LED COB chip


उत्पाद विवरण

36V KSF High Lumens RA90 190-220LM/W
Features
  • Available in 3-step, 2-step and 1.5-step EasyWhite® bins
  • Available in 70, 80, 90, 95 and 97 minimum Ra options
  • Low thermal resistance
  • RoHS and REACh compliant
Description

The TYF COB package has high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.

Applications
  • Indoor General Lighting: Spotlights, Track Lights, Downlights
  • Industrial lighting: Floodlight, High bay light, Streetlight
Technical Specifications
Limiting power:
24W (Standard power), 30W (Max power)
Forward Voltage (VF):
34-38V
Forward Current:
TYP 640mA, Max 920mA
Operating Temperature:
-40°C to 85°C
Junction Temperature:
125°C
Storage Temperature:
-40°C to 105°C
ESD Sensitivity:
2000V
Reverse Voltage:
Reverse testing is not allowed
Reverse Current:
5μA
Soldering Temperature:
350°C/3-5sec
36V KSF high lumens RA90 190-220LM/W 0
